Product Code :

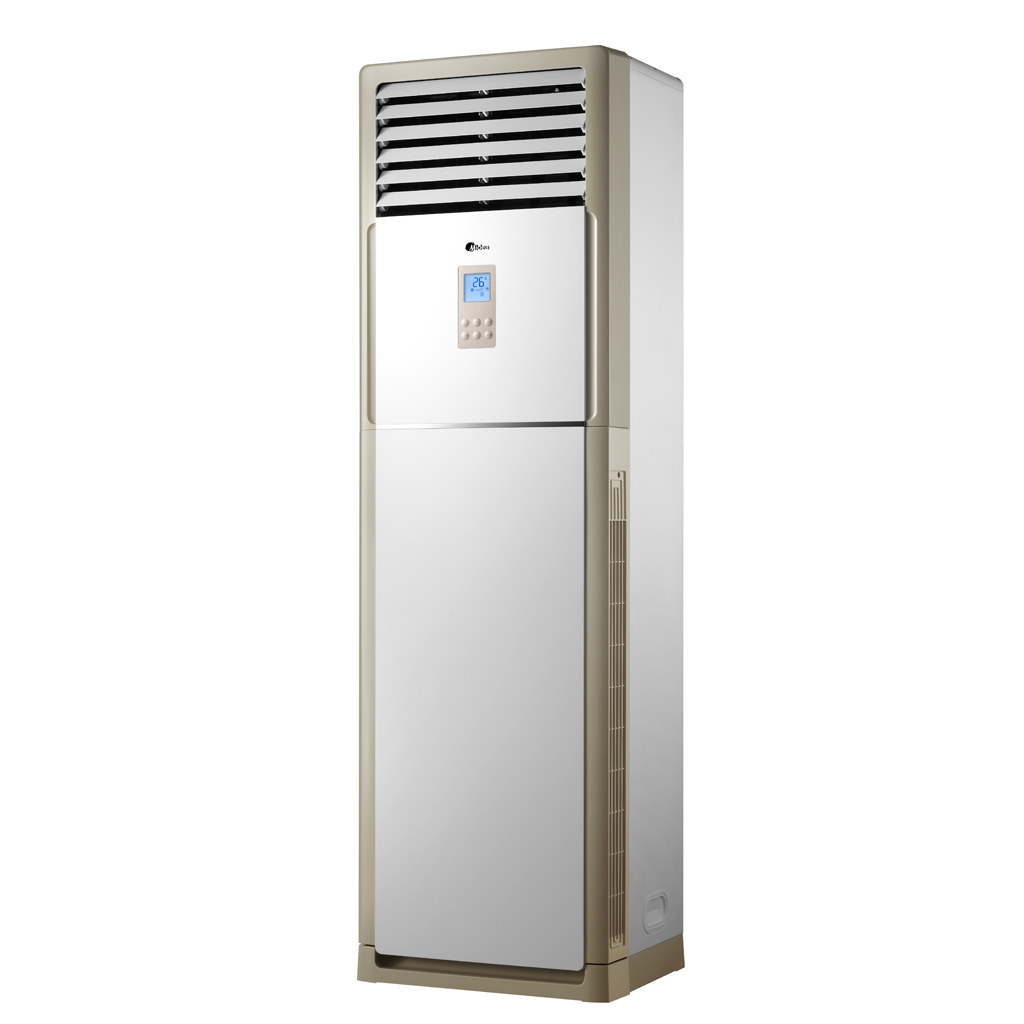

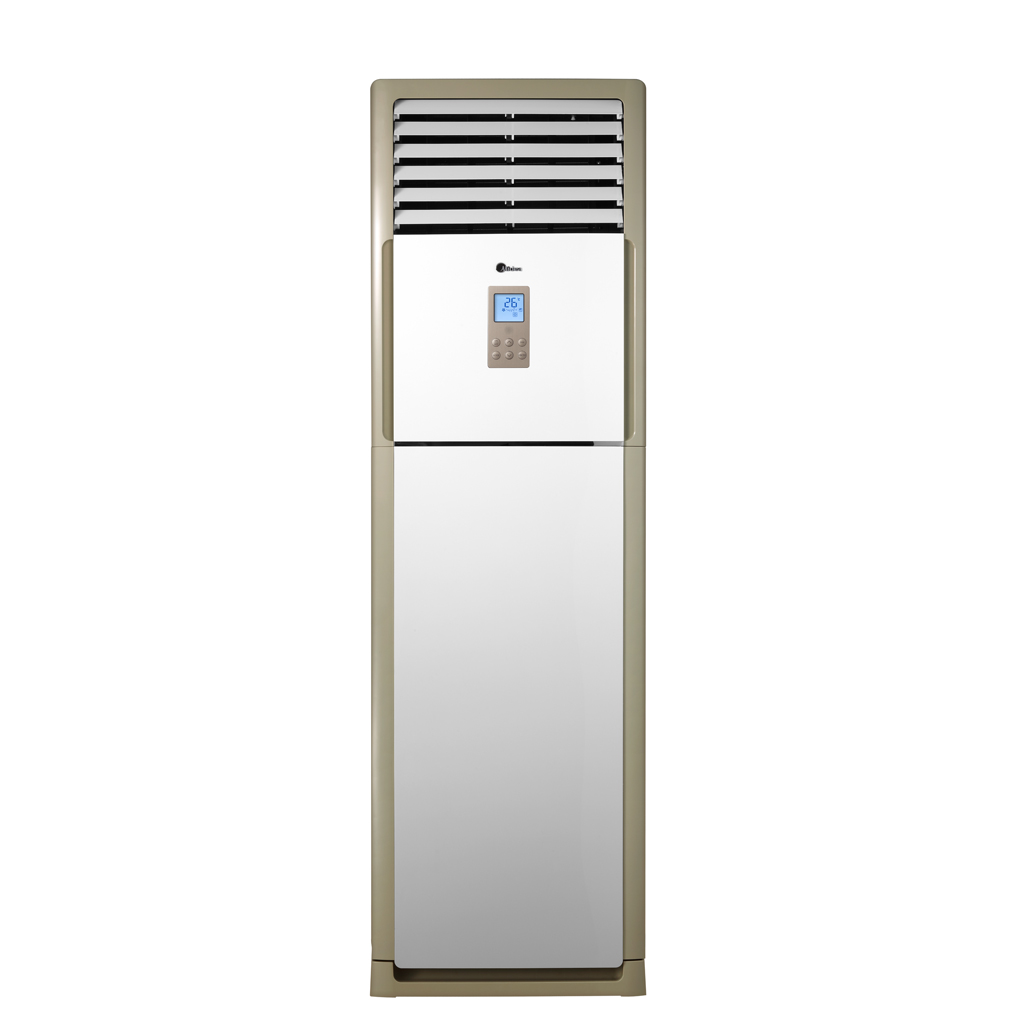

Everest
- Features
- Technical Specifications
Features
| Manoual ON/OFF |
| Smart Diagnosis |
Technical Specifications
| Model | Everest-36H3 | Everest-48H3 | Everest-60H3 | ||||
| Cooling Capacity | Btu/h | 36,000 | 48,000 | 60,000 | |||
| Heating Capacity | Btu/h | 38,000 | 50,000 | 63000 | |||
| Cooling Rated current | A | 15.3 | 8 | 10 | |||
| Heating Rated current | A | 14.2 | 7.4 | 9.4 | |||
| EER | W/W | 3.01 | 3.01 | 3.02 | |||
| COP | W/W | 3.41 | 3.42 | 3.42 | |||
| Power supply | Ph-V-Hz | 220-240-1Ph | 380-415-3PH | 380-415-3PH | |||
| Cooling Input | W | 3505 | 4675 | 5820 | |||
| Indoor Unite Dimension(W*D*H) | mm | 550x418x1824 | 550x418x1824 | 600x455x1934 | |||
| Outdoor Unite Dimension(W*D*H) | mm | 946×410×810 | 1170x350x900 | 1333x410x950 | |||
| Outdoor noise level | dB(A) | 60 | 62 | 64 | |||
| Indoor noise level (Hi) | dB(A) | 53 | 53 | 53 | |||
| Indoor noise level (Lo) | dB(A) | 45 | 45 | 49 | |||
| Refrigerant type - Hi | m3/h | 1700 | 1700 | 1900 | |||
| Refrigerant type - Lo | m3/h | 1480 | 1480 | 1900 | |||
| Ambient temperature(cooling/heating) | ℃ | 18-52/-7-24 | 18-52/-7-24 | 18-52/-7-24 | |||
| Liquid side/ Gas side | mm(inch) | 3/4-3/8 | 10-20 | 3/4-3/8 | 10-20 | 3/8-3/4 | 10-20 |
| Max. refrigerant pipe length | m | 20 | 30 | 50 | |||
| Max. difference in level | m | 10 | 15 | 25 | |||
| Refrigerant type | R22 | R22 | R22 | ||||
| Compressor | Type | Scroll | Scroll | Scroll | |||
| Compressor | Brand | Panasonic | Panasonic | Panasonic | |||
