Product Code :

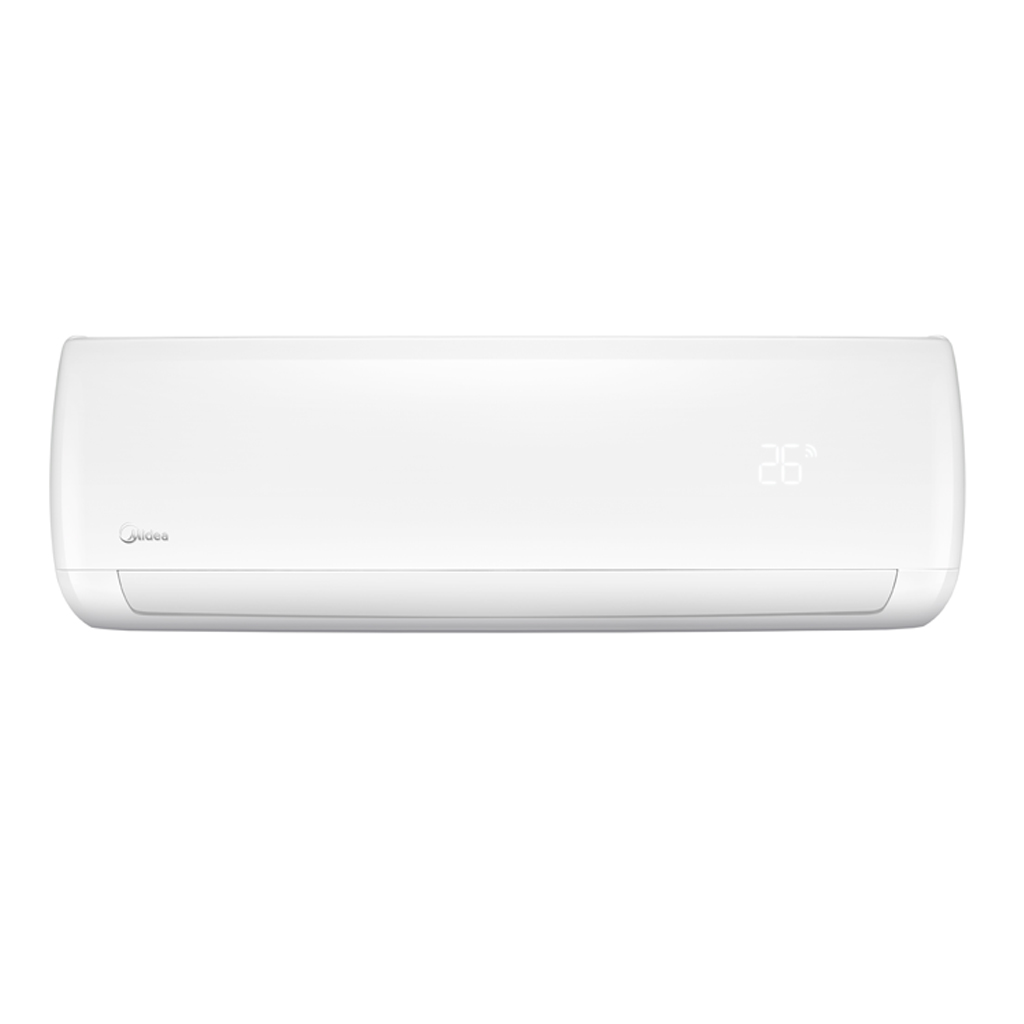

Mission Inverter

Features

Technical Specifications

Model   Mission9H1i-k Mission12H1i-k Mission18H1i-k  Mission24H1i-k  Mission30H1i-k
Capaticy Cooling 9,000 12,000 18,000 24,000 28,320
Capaticy Heating 10,000 13,000 19,000 24,300 31,000
Amp Cooling 3.3 4.8 6.7 8.7 9.4
Amp Heating 3.5 4.6 6.7 8.6 9.6
EER (Watts / Watts )   3.47 3.21 3.41 3.22 3.83
COP ( Watts / Watts )   3.62 3.63 3.64 3.61 4.11
Power consumption( Watts) Cooling 760 1095 1547 2010 2167
Power consumption( Watts) Heating 810 1050 1530 1973 2210
Performance   Cooling & Heating Cooling & Heating Cooling & Heating Cooling & Heating Cooling & Heating
Unit Demensions  (internal ) mm 730x198x293 810x200x300 980x225x325 1090x235x338 1350x272x365
Unit Demensions (external ) mm 770x300x555 800x333x554 845x360x702 845x360x702 810×420×946
Volume of sound ( external unit) decibel 56 56 58 60 61
Volume of sound (internal unit) Hi 41 41 47 50 52
Volume of sound( internal unit) Med 31 29 35 44 45
Volume of sound ( internal unit) low 25 25 28 40 41
Air Volume displacement hi 480 550 850 1200 1640
Air Volume displacement Med 340 400 560 1020 1370
Air Volume displacement low 250 290 410 850 1120
Device temperature   7-43- 7-43- 7-43- 7-43- 7-43-
Tube Size   1/4-3/8 6-10 1/4-1/2 6.5-12 1/4-1/2 6-12 3/8-5/8 10-16 3/8-5/8 10-16
Maximum lengh of piping H 25 25 30 50 50
Maximum lengh of piping v 10 10 20 25 25
Refrigerant   R410A R410A R410A R410A R410A
Compressor / type oa air   ROTARY GMCC/mild ROTARY GMCC/mild ROTARY GMCC/mild ROTARY GMCC/mild ROTARY GMCC/mild
