Product Code :

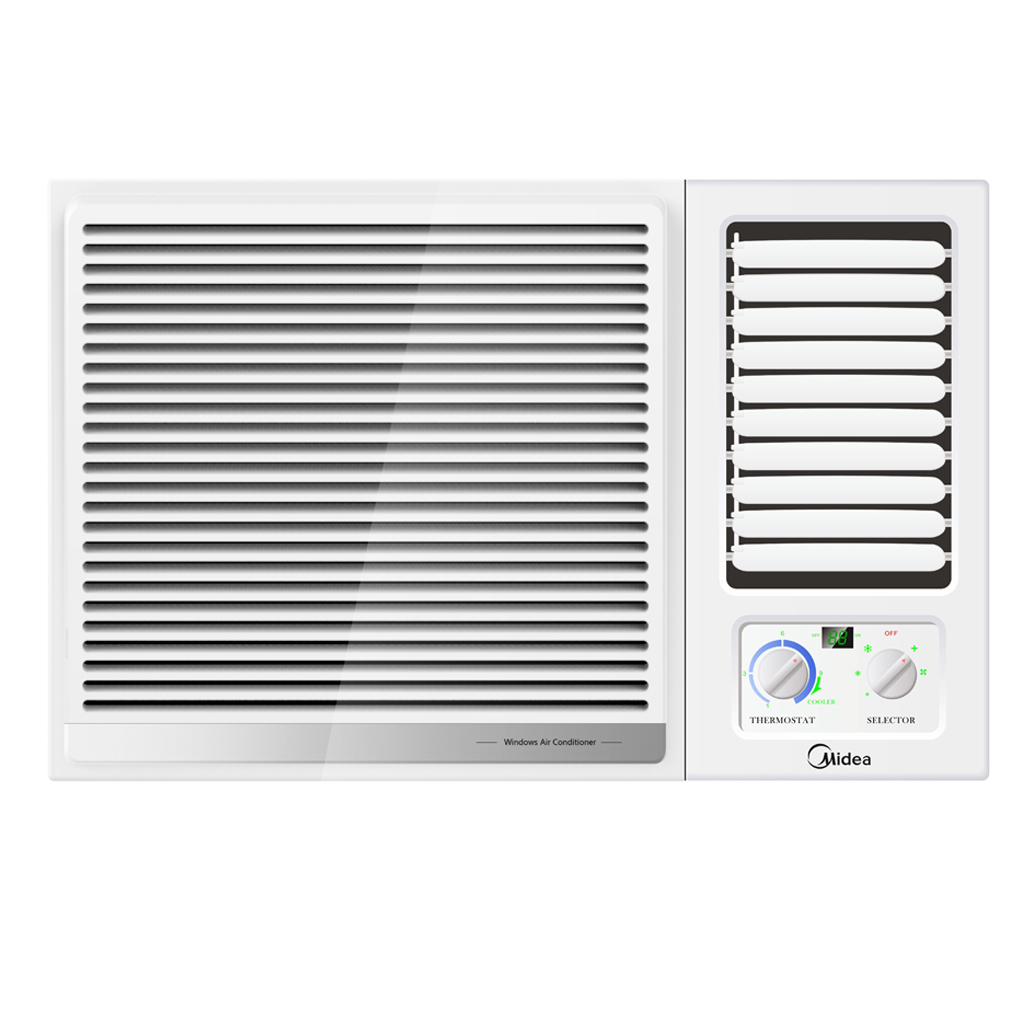

Window
- Features
- Technical Specifications
Features
| Evaporator Fin Type : Hydrophilic aluminium |
| Mechanical Control |
| Condenser Fin Type : UnHydrophilic aluminium |
Technical Specifications
| Sale model | Win-19P | Win-18R | Win-24P | Win-25P | ||||
| Cooling Capacity | Btu/h | 19,000 | 18,000 | 24,000 | 25,000 | |||
| Cooling Current | A | 8.5 | 8 | 10.8 | 11.09 | |||
| Cooling EER | W/W | 2.85 | 2.87 | 2.81 | 2.87 | |||
| Cooling Input | W | 1953 | 1838 | 2500 | 2552 | |||
| Dimension(W*D*H) | mm | 660x680x428 | 660x680x428 | 660x680x428 | 660x680x428 | |||
| Indoor side noise level (Hi/Mi/Lo) | dB(A) | 58/58/58 | 57.6/53.3/52.7 | 65/63/61 | 60/59/58 | |||
| Indoor side air flow | Hi | 710 | 770 | 750 | 788 | |||
| Indoor side air flow | Mi | 590 | 690 | 630 | 700 | |||
| Indoor side air flow | Lo | 470 | 590 | 550 | 645 | |||
| Moisture Removal | L/h | 1.8 | 1.8 | 2.2 | 2.2 | |||
| Operation temp (indoor(cooling/heating)) | ℃ | 17-32/---- | 17-32/---- | 17-32/---- | 17-32/---- | |||
| Operation temp (outdoor(cooling/heating)) | ℃ | 18-43/--- | 18-52/---- | 18-43/--- | 18-43/--- | |||
| Gross weight | kg | 65 | 54 | 68.5 | 68.5 | |||
| Refrigerant type | R22 | R22 | R22 | R22 | ||||
| Compressor | Type | RECIPROCATING | ROTARY | RECIPROCATING | RECIPROCATING | |||
| Compressor | brand | KK | GMCC | KK | KK | |||
